3/16" x 2-1/4" Stainless Steel Jaw x Eye Turnbuckle

Part No.: 51609005
$5.28
Retail Price:$7.23
Your Savings:$1.95(27%)
Jaw x Eye Turnbuckle - 3/16 inch x 2-1/4 inch size, Stainless Steel, Type 316. Working Load Limit (WLL) : 320 lbs.
expand_less
Material Type 316 Stainless Steel
Weight 0.15 lb
Working Load Limit (WLL) 320 lbs
Size3/16 inches
Length2-1/4 inches
expand_more

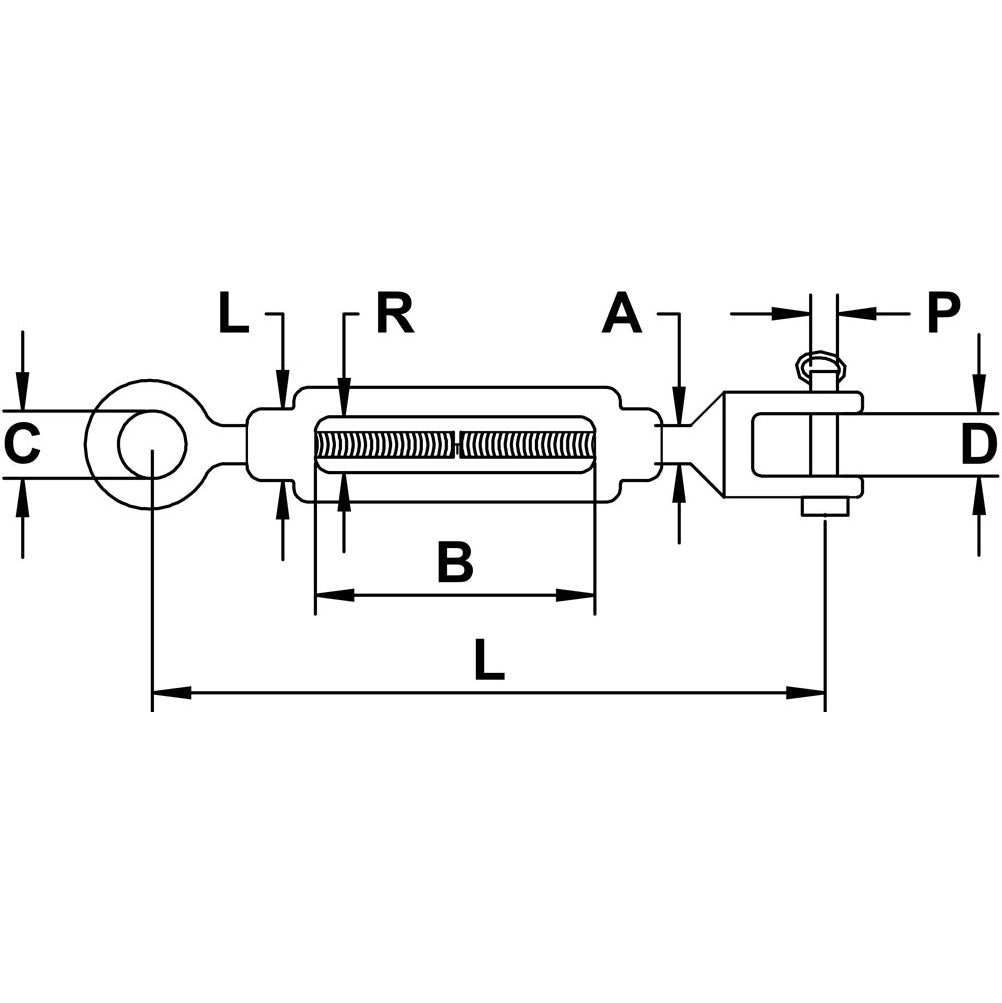

three-sixteenths-inch-x-two-and-one-quarter-inch-stainless-jaw-eye-turnbuckle-specification-diagram
NameValue
Thread Diameter (A):3/16 inches
Take-Up (B):2-1/4 inches
Eye Inside Width (C):0.38 inches
Jaw Inside Width (D):0.29 inches
Pin Diameter (P):0.19 inches
Closed Pin to Eye Center (L):4 inches
0 Review(s)
$5.28
Retail Price:$7.23
Your Savings:$1.95(27%)
Availability: 201 In Stock info

if you order in the next

Jaw x Eye Turnbuckle - 3/16 inch x 2-1/4 inch size, Stainless Steel, Type 316. Working Load Limit (WLL) : 320 lbs.
