5/16" Cable x 3.25" Diameter Henry Block Sheave, Zinc Plated, with Self-Lubricated Bronze Bushing. WLL: 1600 lbs. The Working Load Limit (WLL) listed for this sheave only takes into account the sheave and bronze bushing. A qualified person should determine the WLL of your assembly, load pin/bolt, and mounting solution before use.

Henry Sheaves: Pulley Sheaves Designed to Last
Henry Sheaves: Self-Lubricating Sheaves Designed to Last

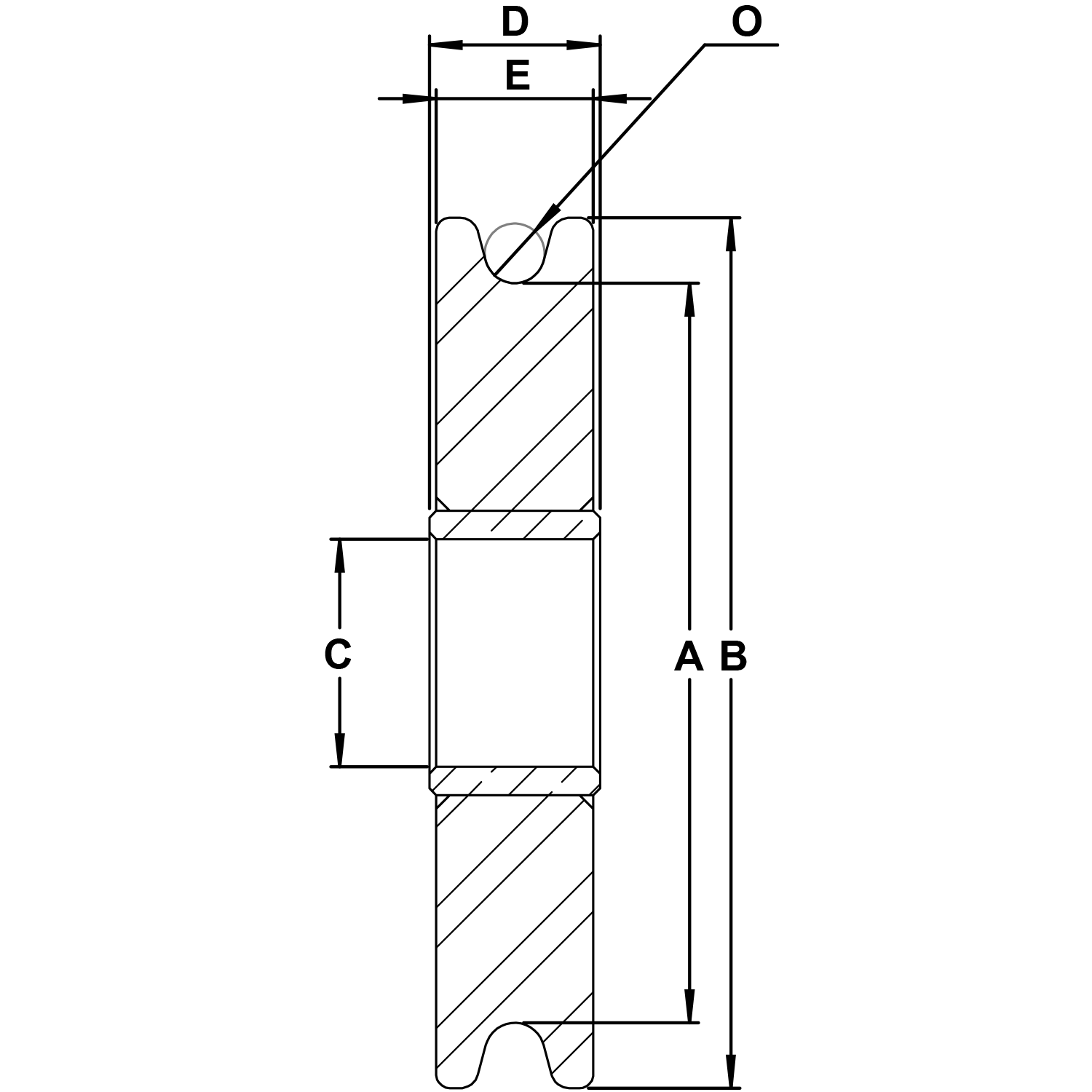

Name | Value |
---|---|
Thread Diameter (A): | 2.5 inches |
Overall Diameter (B): | 3.25 inches |
Bore Inside Diameter (C): | 0.75 inches |
Bushing Width (D): | 0.625 inches |
Sheave Width (E): | 0.575 inches |
Line Diameter (O): | 5/16 inches |
