3/8" Black Ropeze Clamp. To be used with 3/8" rope/cordage. Works well with 9 mm rope.
Ropeze clamps are sized for solid braid rope. You must use the next larger size Ropeze Clamp for proper fit if you are using stiff, dense, triple strand rope; Kernmantle Rope (Double Braid); Manila Rope; or Hemp Rope.
Ropeze Clamps were tested to hold these loads when properly installed with properly sized Solid Braid and 3-Strand Nylon rope.
|Working Load Limit (5:1) (lbs)||Breaking Load (lbs)|
|Ropeze Size||Rope Clamp Only||Rope Clamp w/ Booster Clamp||Rope Clamp Only||Rope Clamp w/ Booster Clamp|

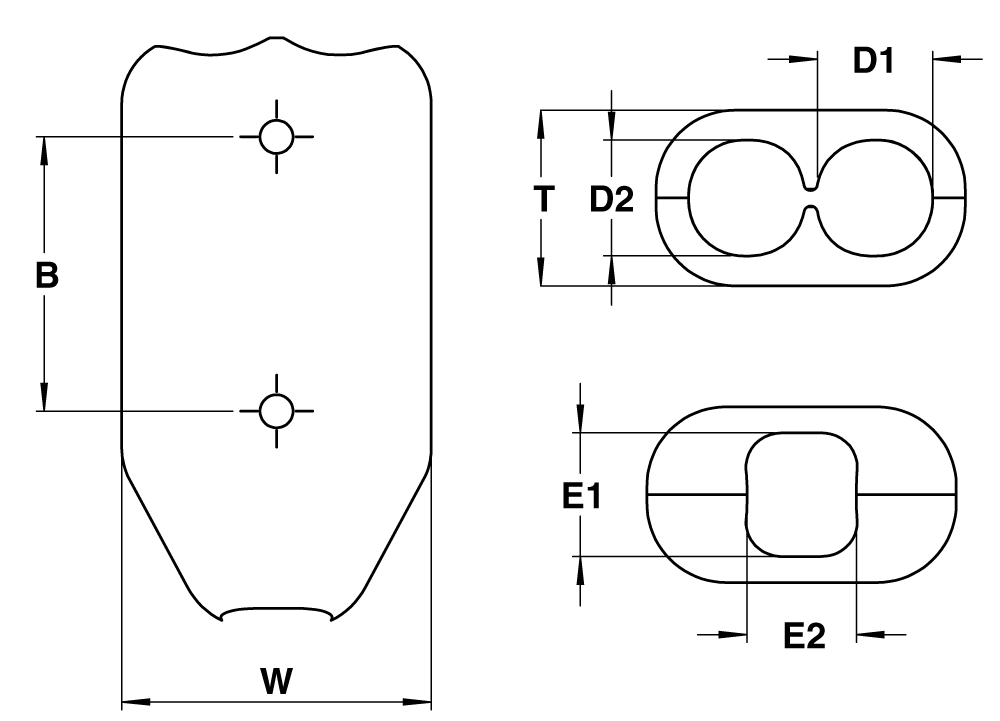

|Hole Width (D1):||0.385 inches|
|Hole Height (D2):||0.45 inches|
|Height (T):||0.775 inches|
|Length Screw to Screw (B):||0.8 inches|
|Length (L):||1.96 inches|
|Width (W):||1 inches|
|Rope Exit Height (E1):||0.47 inches|
|Rope Exit Width (E2):||0.3825 inches|
