Stainless Shoulder Eye Bolts

SKU: 51611222
Size: 3/8" x 6"
Price:
Sale price$8.49
Stock:
75 In Stock

In Stock Orders Ships Same Day!!!

You can add more than the in-stock qty to your cart, and we will ship your complete order once all the stock arrives. In Stock Orders the ship same day if placed before 2PM CT. All items in your cart must be listed as In Stock. Place separate orders on in-stock and back ordered items if you want items to ship the same day. Applies to UPS shipping methods only, LTL Freight may go out the same day if carrier pick-up schedule permits.

Stainless Shoulder Eye Bolts

Register to receive a notification when this item comes back in stock.

Notify me when available When will it arrive?
Return Policy: 30-Day Returns, see our return policy for more info.
Material: Type 316 Stainless Steel

Ultimate Tensile Strength (UTS):

Working Load Limit (WLL):

Minimum Breaking Load (MBL):

Size:

Length:

Weight:

Standard Reel Size (Flange Diameter x Height):

Shipping Note:

Videos

Description

Stainless Shoulder Eye Bolts

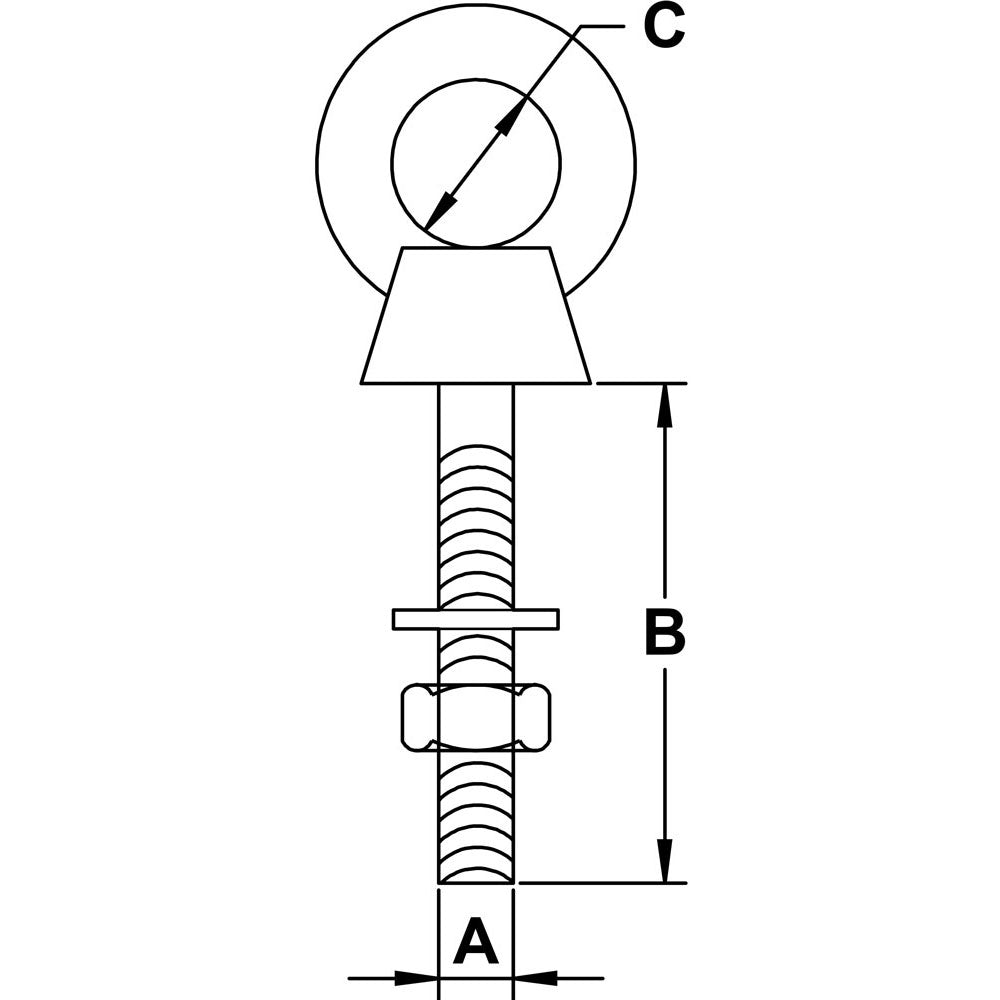

Dimensions are in inches unless otherwise noted.

Size ØC(inch) ØD(inch) L(inch) M(thread) Weight(Ib) WLL.(Ib)
1/4" x 1-9/16" 0.63 0.2 1.57 1/4" 0.06 605
1/4" x 2" 0.63 0.2 1.97 1/4" 0.06 605
1/4" x 2-3/8" 0.63 0.2 2.36 1/4" 0.07 605
1/4" x 3-3/16" 0.63 0.2 3.15 1/4" 0.07 605
1/4" x 4" 0.63 0.2 3.94 1/4" 0.08 605
5/16" x 2-3/8" 0.79 0.24 2.36 5/16" 0.13 715
5/16" x 4" 0.79 0.24 3.94 5/16" 0.15 715
3/8" x 3-3/16" 0.98 0.31 3.15 3/8" 0.23 1430
3/8" x 4" 0.98 0.31 3.94 3/8" 0.25 1430
3/8" x 5" 0.98 0.31 4.92 3/8" 0.28 1430
3/8" x 6" 0.98 0.31 5.9 3/8" 0.31 1430
1/2" x 1-3/4" 1.18 0.39 1.77 1/2" 0.4 1925
1/2" x 3-3/16" 1.18 0.39 3.15 1/2" 0.47 1925
1/2" x 6" 1.16 0.39 5.9 1/2" 0.6 2000
5/8" x 6" 1.38 0.49 5.9 5/8" 1 3200

QUESTIONS & ANSWERS

  • I need a 5/8"-11 x 15" eye bolt with threads to the shoulder. Do you make this? If you do, what would be the cost? I need 30.

    Unfortunately, we will not have these in stainless.  The longest of these we will carry in stainless is 6".  We do have galvanized eye bolts that are much longer, however they do not have threads up to the shoulder.  If you wish for longer threads, we carry the threaded rods in 12", 24", and 36" which can be used with an eye nut.
